Gravity Does the Work.
You Get the Job Done.

Standard Design

Each trailer comes equipped with heavy-duty tie-downs and checker plate ramps, helping you load, secure, and transport cargo with confidence.

Design Your Trailer

Whether you're looking for increased performance or a unique look, our add-on options allow you to make your Weberlane Tilt-n-Load Trailer truly yours!

Common Upgrades

We offer a variety of options tailored to your specific needs.

27' and 29' Tri-Axle Option

Hot Dipped Galvanized

Spare Tire & Mount

Break-Away Kit

Want a Price?

Contact us to find your closest Weberlane Dealer

519-291-5035

Trailer Specifications

MODEL: WL1303TL
OVERALL LENGTH​: 20'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 20"
DECK LENGTH: 13' + 3'
DECK WIDTH: 81"
PLATFORM HEIGHT: 20"
HITCH HEIGHT: 18"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3050 lbs
PAYLOAD: 7088 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electric 2 Axle
TIRES: ST225/75 R15 C
WHEELS: 15" 6 Bolt
BREAK AWAY KIT​: Optional
MODEL: WL1404TL
OVERALL LENGTH​: 22'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 20"
DECK LENGTH: 14' + 4'
DECK WIDTH: 81"
PLATFORM HEIGHT: 20"
HITCH HEIGHT: 18"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3590 lbs
PAYLOAD: 6548 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electric 2 Axle
TIRES: ST225/75 R15 C
WHEELS: 15" 6 Bolt
BREAK AWAY KIT​: Optional
MODEL: WL1604TL
OVERALL LENGTH​: 24'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 20"
DECK LENGTH: 16' + 4'
DECK WIDTH: 81"
PLATFORM HEIGHT: 20"
HITCH HEIGHT: 19"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3850 lbs
PAYLOAD: 6288 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electric 2 Axle
TIRES: ST225/75 R15 C
WHEELS: 15" 6 Bolt
BREAK AWAY KIT​: Optional
MODEL: WL1804TL
OVERALL LENGTH​: 26'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 20"
DECK LENGTH: 18' + 4'
DECK WIDTH: 81"
PLATFORM HEIGHT: 20"
HITCH HEIGHT: 19"
G.V.W.R 10,138 lbs
CURB WEIGHT: 4190 lbs
PAYLOAD: 5948 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electric 2 Axle
TIRES: ST225/75 R15 C
WHEELS: 15" 6 Bolt
BREAK AWAY KIT​: Optional
download spec sheet

Related Trailers

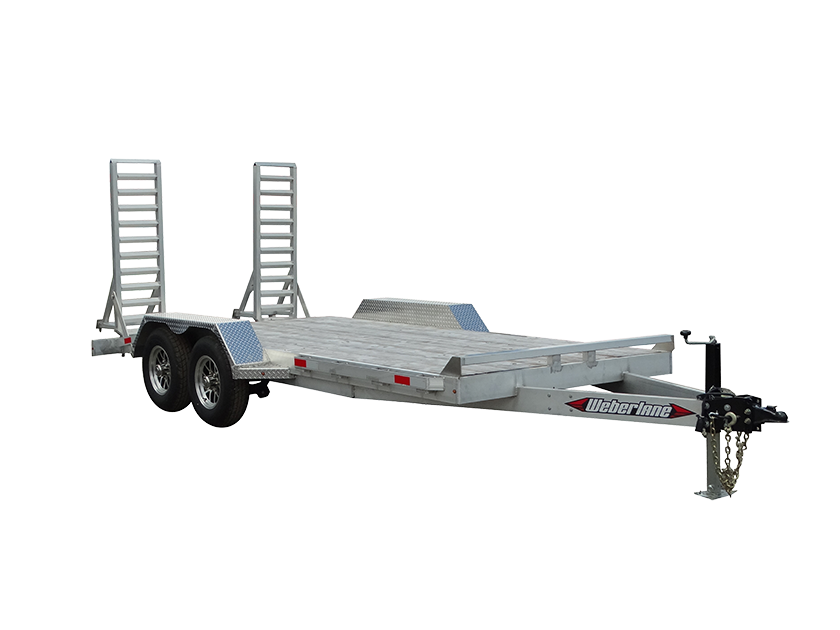

LOW BED -SKIDSTEER TRA​ILERS

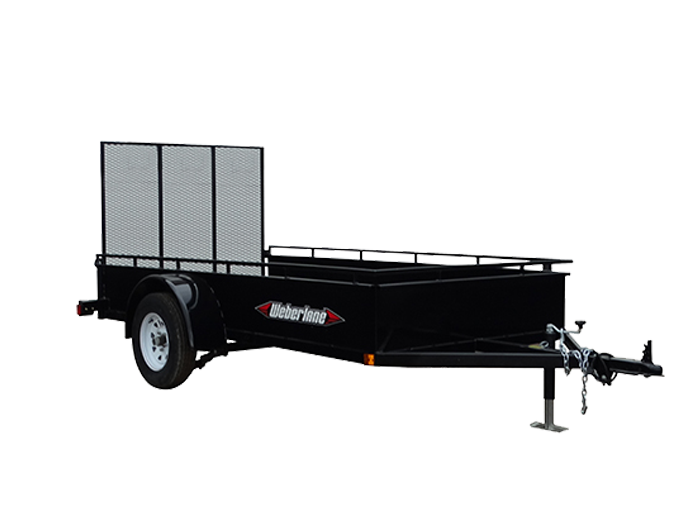

UTILITY T​RAILERS

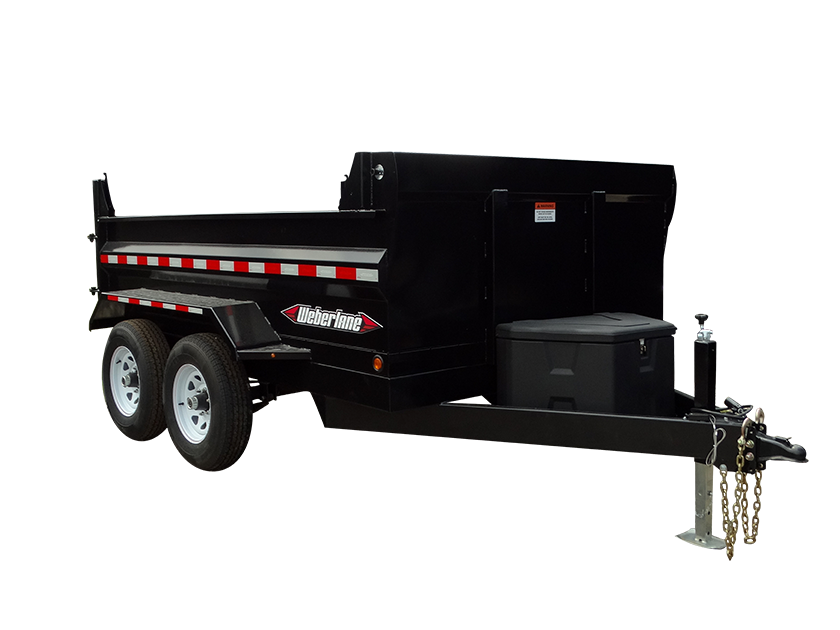

DUMP TRAILERS

Trailer Features:

  • Spring Axles and Brake Components
  • 48" Mesh Tailgate Ramp
  • Reflective Marking
  • Spring Axle - EZ Lube Hubs
  • White Modular Wheels
  • C6 Radial Tires
  • 5000 lb Coupler for 2" Ball
  • 2000 lb Top Wind Jack
  • Safety Chains
  • Wood Deck
  • Top Tie Down Rail
  • Fenders
  • License Plate Bracket with Light
  • Gloss Paint Finish
  • All Sealed Wiring
  • Light Package
