A New Low in Float Trailers

Standard Design

Each trailer comes equipped with a durable polyethylene tongue box, a reliable breakaway kit, and integrated heavy-duty tie-down rings.

Design Your Trailer

Whether you're looking for increased performance or a unique look, our add-on options allow you to make your Weberlane EZE-lift Trailer truly yours!

CARGO/EZE LIFT OPTION

The Cargo/EZE-Lift option combines all the advantages of our EZE-Lift Hydraulic Drop Deck design with the protection of a fully enclosed trailer—keeping your equipment safe from the elements and secure from theft. Perfect for loading low-clearance machines like indoor scissor lifts or specialty concrete groovers.

The electric-over-hydraulic system lowers the entire cargo box flat to the ground—no ramps, no heavy lifting, no wasted energy. Your crew stays safer, your equipment loads faster, and your jobs get done easier. When you’re ready to roll, the box lifts smoothly back to travel height, keeping your investment protected every mile.

Want a Price?

Contact us to find your closest Weberlane Dealer

519-291-5035

Trailer Specifications

MODEL: WLEZ1100
OVERALL LENGTH​: 16'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 51"
DECK LENGTH: 11'
DECK WIDTH: 72"
DECK HEIGHT: 20"
RAISED BED HEIGHT: 16 1/2"
LOWERED BED HEIGHT: 3"
HITCH WEIGHT: 699 lbs
HITCH HEIGHT: 17"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3100 lbs
PAYLOAD: 7038 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electrical 2 Axle​s
TIRES: ST225/75 R15​ C
WHEELS: 15" 6 Bolt
MODEL: WLEZ1200
OVERALL LENGTH​: 17'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 51"
DECK LENGTH: 12'
DECK WIDTH: 72"
DECK HEIGHT: 20"
RAISED BED HEIGHT: 16 1/2"
LOWERED BED HEIGHT: 3"
HITCH WEIGHT: 748 lbs
HITCH HEIGHT: 17"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3293 lbs
PAYLOAD: 6845 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electrical 2 Axle​s
TIRES: ST225/75 R15​ C
WHEELS: 15" 6 Bolt
MODEL: WLEZ1400
OVERALL LENGTH​: 19'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 51"
DECK LENGTH: 14'
DECK WIDTH: 72"
DECK HEIGHT: 20"
RAISED BED HEIGHT: 16 1/2"
LOWERED BED HEIGHT: 3"
HITCH WEIGHT: 899 lbs
HITCH HEIGHT: 17"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3696 lbs
PAYLOAD: 6442 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electrical 2 Axle​s
TIRES: ST225/75 R15​ C
WHEELS: 15" 6 Bolt
MODEL: WLEZ1600
OVERALL LENGTH​: 21'
OVERALL WIDTH: 102"
OVERALL HEIGHT: 51"
DECK LENGTH: 16'
DECK WIDTH: 72"
DECK HEIGHT: 20"
RAISED BED HEIGHT: 16 1/2"
LOWERED BED HEIGHT: 3"
HITCH WEIGHT: 796 lbs
HITCH HEIGHT: 17"
G.V.W.R 10,138 lbs
CURB WEIGHT: 3900 lbs
PAYLOAD: 6238 lbs
AXLE: 2 x 5200 lbs
BRAKES: Electrical 2 Axle​s
TIRES: ST225/75 R15​ C
WHEELS: 15" 6 Bolt
download spec sheet

Related Trailers

ENCLOSED TRA​ILERS

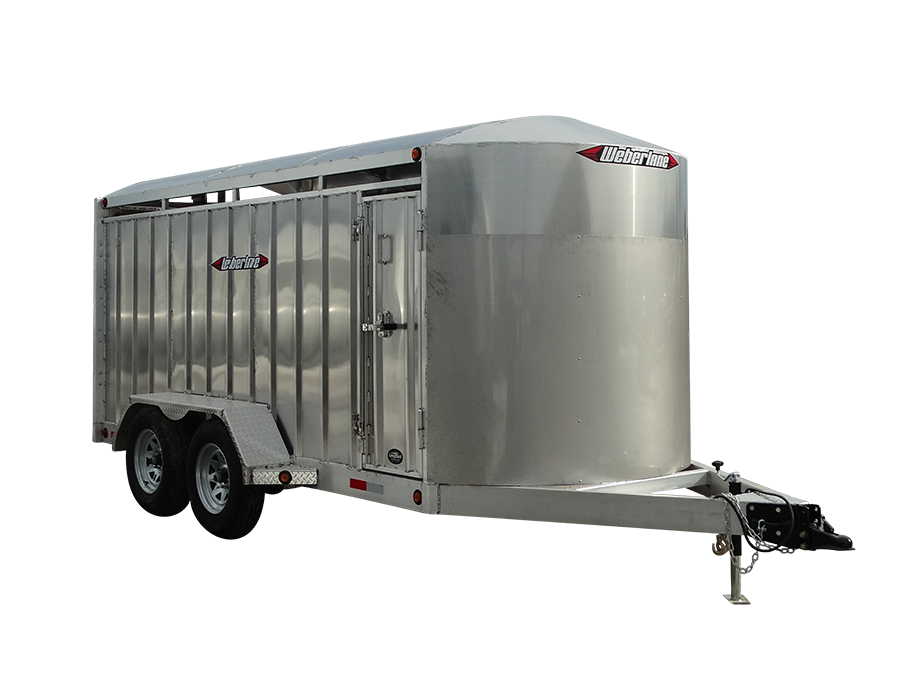

ALUMINUM LIVESTOCK T​RAILERS

DUMP/CARGO TRAILERS

Trailer Features:

  • Spring Axles and Brake Components
  • Metal Checkerplate Ramps
  • Integrated Heavy Duty Tie-Down Rings
  • Independent Suspension Axles
  • White Modular Wheels with C6 Radial Tires
  • Standard Break Away Kit
  • 14,000 lb Coupler for 2 5/16" Ball
  • 7000 lb Side Wind Drop Leg Jack
  • Safety Chains and Reflective Marking
  • Wood Deck
  • 12 Volt Powerpack
  • Heavy Duty Fenders
  • License Plate Bracket with Light
  • Gloss Paint Finish
  • Rubber Grommet Sealed Light Package
  • Polyethylene Tongue Box

Add-On Options:

  • Spare Tire
  • Spare Tire Mount
  • Fifth Wheel Upgrade to 2 5/16" Ball Gooseneck
  • 8000 lb Electric Winch Installed
  • Hydraulic Tailgate
  • 6000 - 7000 lb Axles
  • Surge Brakes
  • Pintle Hitch
  • 12.000 lb Jack
  • LED Light Upgrade
Contact Us For Any Other Specific Customizations
